Safety gas pressure control system with automatic switching valve for the operation of two-cylinder systems in caravans and campers while driving, for connecting to gas cylinders via a high-pressure line, for controlling the pressure at nominal pressure of the gas device

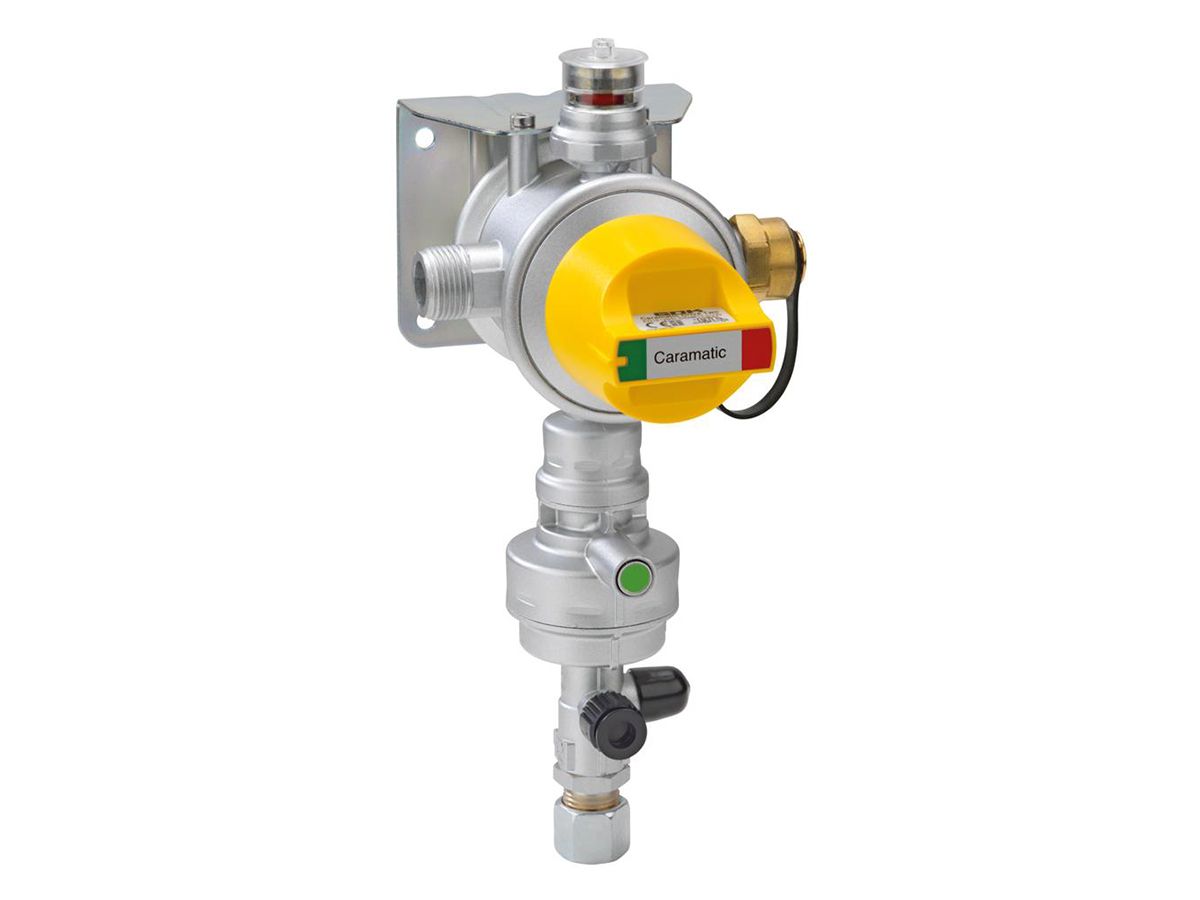

consisting of: automatic switching valve, low pressure regulator with PRV safety valve, mechanical crash sensor, control button, operation and reserve indicator, gas return safety device, test device and wall bracket

Characteristics

• Warming up while driving thanks to the integrated mechanical stop sensor, which blocks the passage of gas in the event of an accident with a deceleration of 3.5 g ± 0.5 g acting directly on the trigger element; this corresponds to an impact velocity of approx. 20 km/h over a fixed obstacle

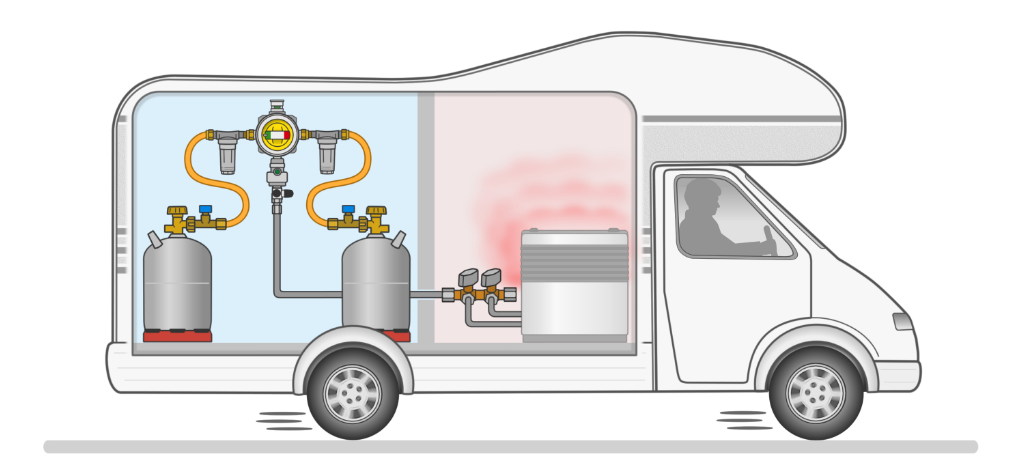

• Automatic switchover to the gas bottle on the reserve side as soon as the gas bottle on the operating side is empty
• a bottle change is possible without interrupting operations
• Gas backflow prevention: Gas flow is prevented when changing cylinders
• Uniform gas supply through optimal use of the contents of the gas cylinder
• Display from which the gas cylinder is extracted
• Use throughout Europe through the use of country-specific high-pressure hoses – Caramatic ConnectDrive (not included in delivery)
• Test device for leak testing of the LPG system without dismantling the pressure control device
• The version with RVS 10/8 outlet connection is equipped as standard with a fitting for connection to 8 mm pipes
