CARAMATIC SAFEDRIVE 30MB (1 CYLINDER)

Caramatic SafeDrive

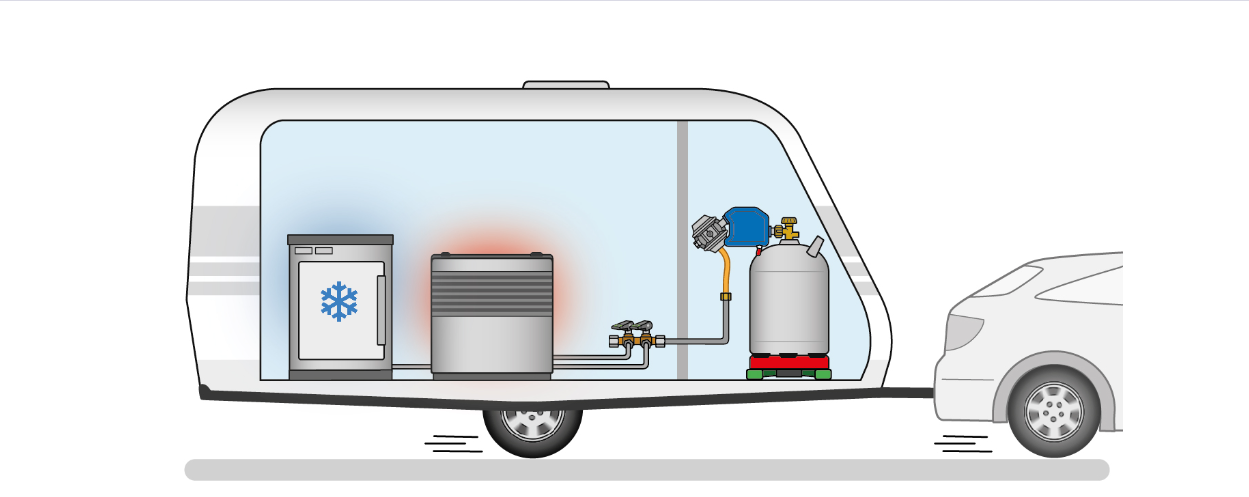

Safety gas pressure regulation device for the operation of single-cylinder systems in campers and caravans while driving, for direct connection to the gas cylinder

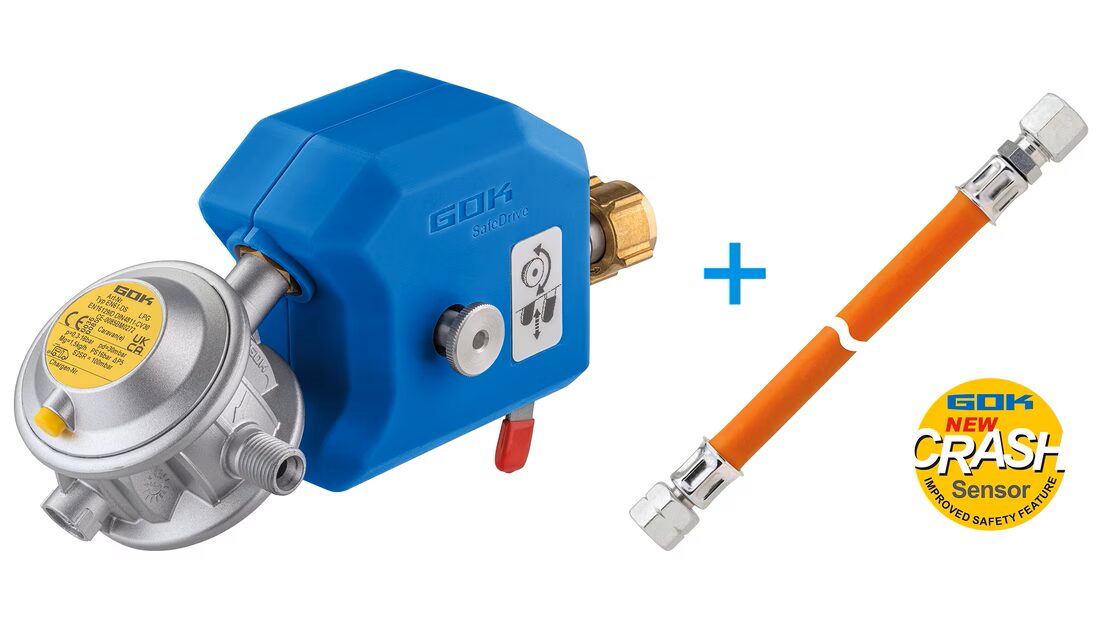

Consisting of: new mechanical shock sensor with pendulum, low pressure regulator with S2SR overpressure safety device, medium pressure hose and regulator bracket

Advantages:

• Gas supply while driving via the NEW integrated mechanical crash sensor with pendulum, which blocks the gas flow in the event of an accident
• Advantages of the new shock sensor with pendulum:
• Faster and easier startup and recovery after response
• more precise performance and therefore less interference due to incorrect response behaviors
• Commissioning possible without problems, even if the recreational vehicle is in an inclined position
• a simple retrofit, as there is no need to wall mount the regulator; Installation takes place directly on the gas cylinder
• small footprint for installation in the gas cylinder case
• The gas cylinder can also remain always open while driving
• greater safety, since in the event of an accident, the gas supply is cut off directly from the gas cylinder
• medium pressure hose (rubber with fabric covering; cold-resistant up to -30 °C; hose dimensions 6.3 x 3.5 mm) G 1/4 x compr. nut suitable. 10 x 450 mm
• As standard, the version with 10/8 compression fitting at the outlet is equipped with an adapter for connecting 8 mm pipes.
• brackets for secure fixing of the regulator to the wall, e.g. when replacing the gas cylinder

IT / GR / CY version

Caramatic SafeDrive 30mbar 1.5 kg/h G.1 Ital.A x RVS10/8 SV

Code. 7183301
