CARRY-BIKE FORD CUSTOM – CUSTOM NUGGET PLUS DB

Bike rack models dedicated to specific types of vans

Bike rack versions dedicated to the most popular minivans on the market.

Characteristics

• From 2 to 4 bikes / 2 E-Bikes
• Version dedicated to the PSA group’s minivans
• All models allow the tailgate to be opened with the bike rack mounted, without bicycles
• Telescopic shelf in AISI 304 stainless steel and 6060 aluminum for models carrying up to 4 bikes
• 6060 aluminum shelf for models carrying 2/3 bikes

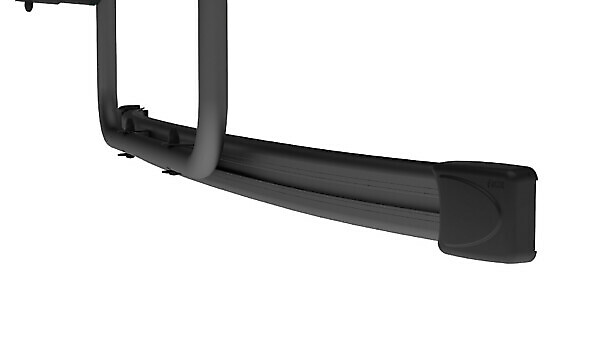

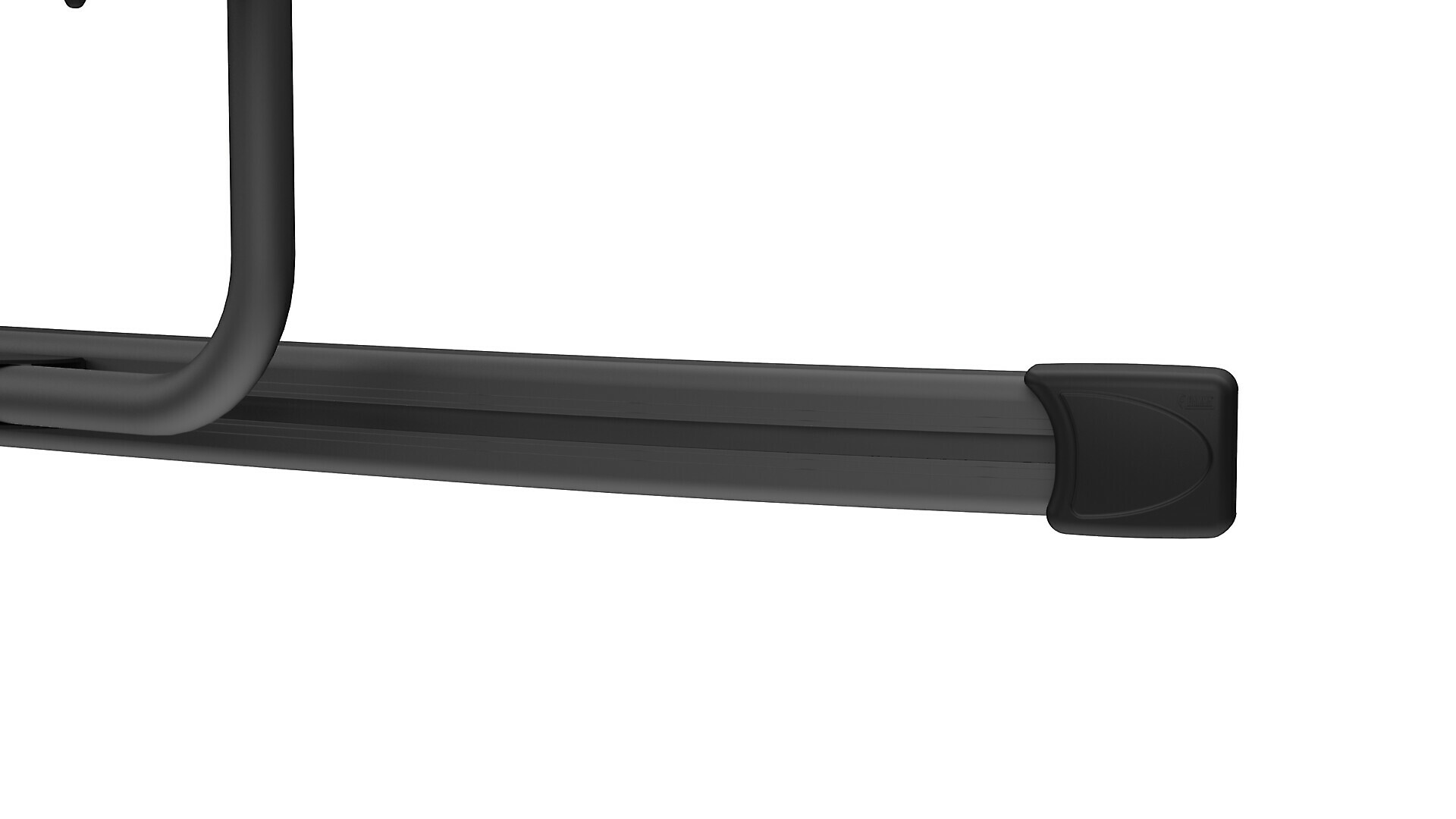

[1] Shelf: depending on the model in aluminium or telescopic in stainless steel / aluminium
[2] Bike-Block: bike locking system
[3] Tensioning system: for safe and easy attachment of the bike rack to the vehicle
[4] Channels: the model varies according to the technical characteristics
[5] Rack Holder: safety shelf lock

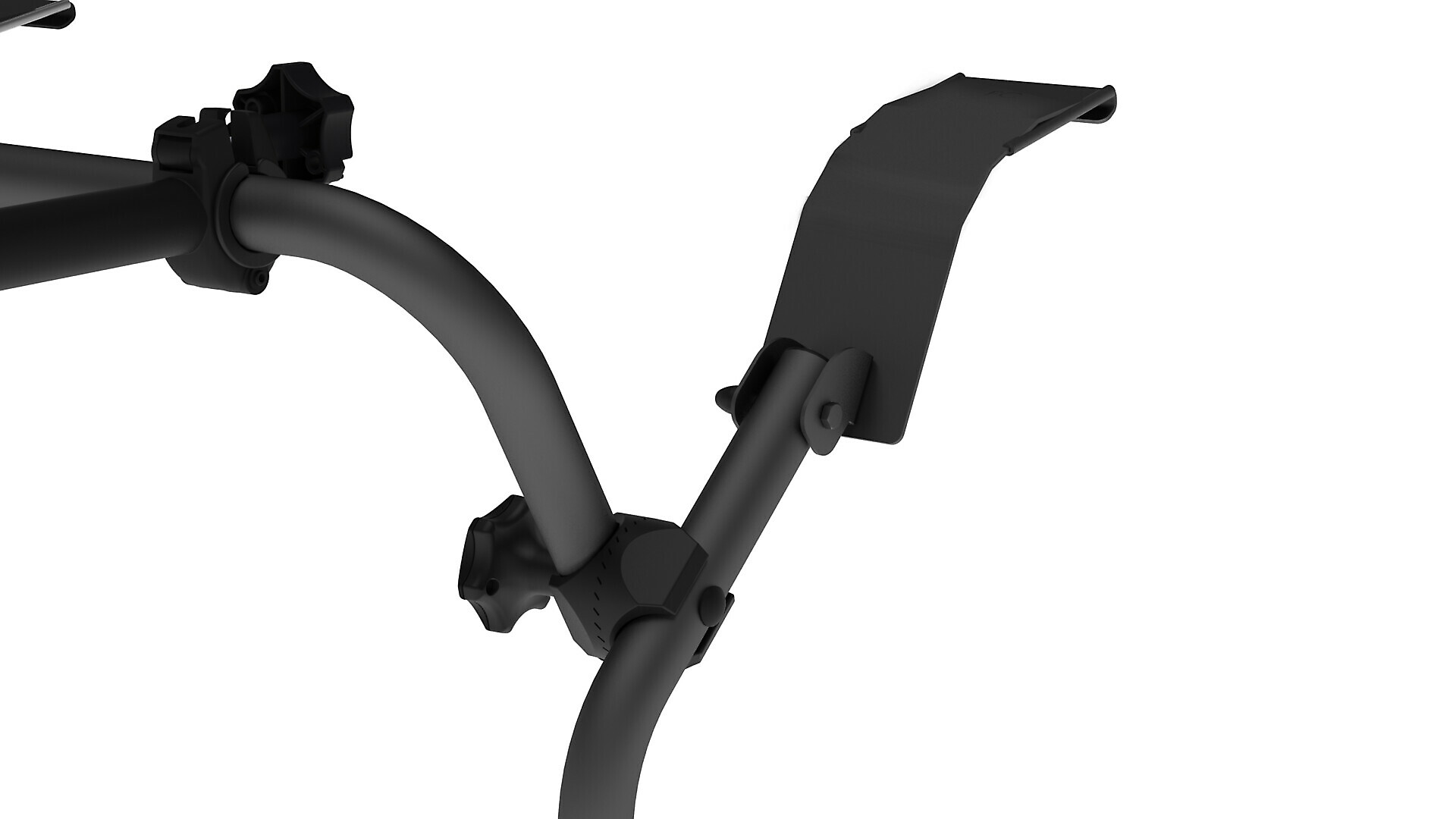

[6] Upper brackets: designed to follow the shape of the vehicle
[7] Quick Lock: quick and safe locking of the wheel to the channel

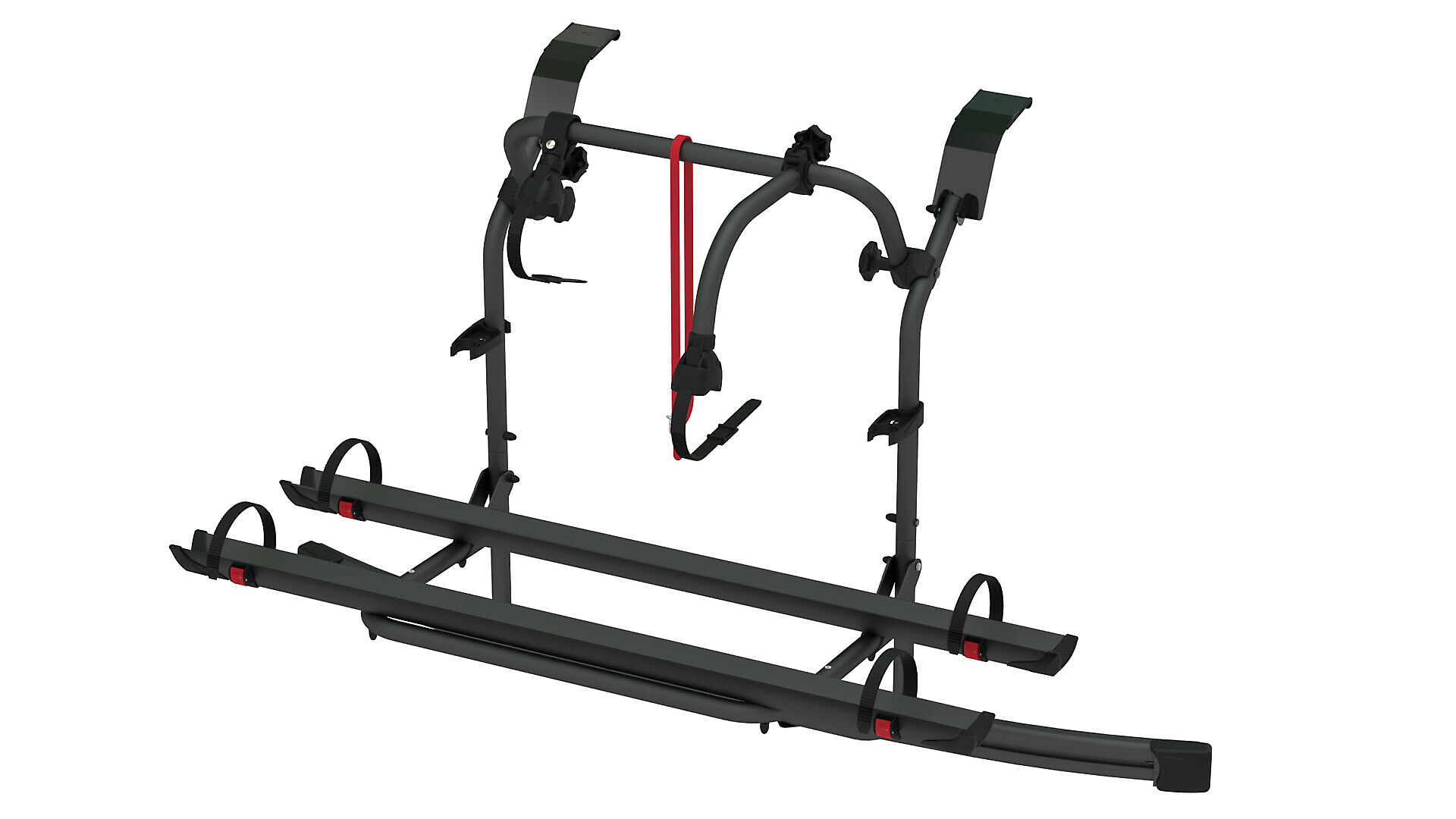

FORD CUSTOM NUGGET / NUGGET PLUS HIGHROOF

For Ford Transit Custom Nugget / Nugget Plus vehicles with a high roof. It adheres to the lower part of the tailgate thanks to the grille profile that follows the shape of the vehicle.
Also for models with pop-top roof and single tailgate.
Suitable for:

• Ford Transit Custom Nugget (≥ 2015)
• Ford Transit Custom Nugget Plus (≥ 2012 – ≤ 2023)
• Ford Cap Land (≥ 2015) – Ford Cap Fan (≥ 2015 – ≤ 2018) – Ford Cap Coast (≥ 2018)
• Ford Cap Life (≥ 2019) – H1

Technical Data:

• Vehicle type: minivan
• Double rear door: yes
• Standard / max bike capacity: 2/3
• Weight / Max load: 8.4/ 50kg
• Assembly: Single tailgate
• Bike-Block Pro 1
• Bike-Block Pro 3
• E-Bike: 2
