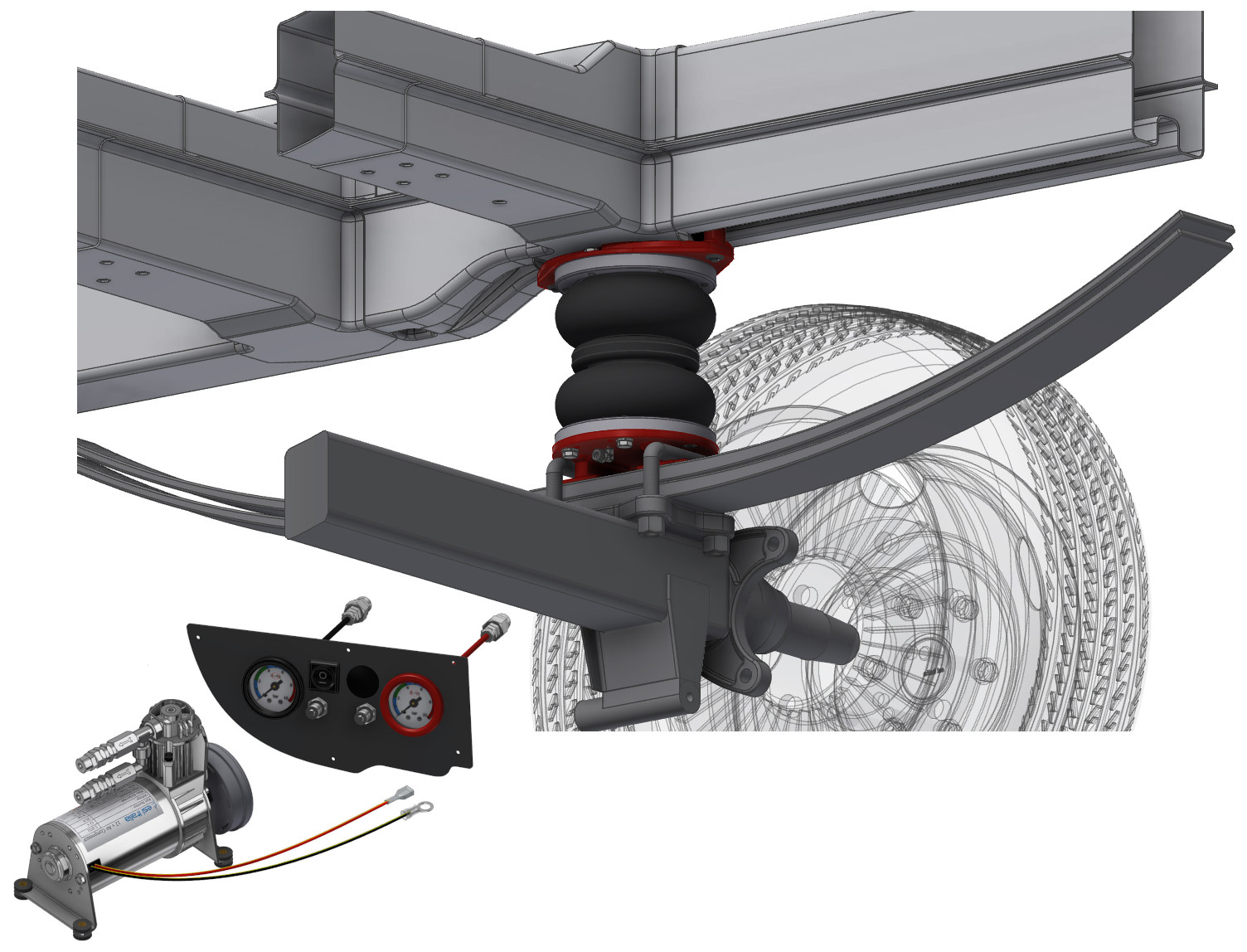

SUSPENSION KIT DUCATO X250/X290 WITH COMPRESSOR AND DASHBOARD PRESSURE GAUGE

The TDS solution for light commercial vehicles are air springs that are applied to the rear axle, interposing themselves between the axle and the frame with the aim of minimising vibrations caused by the impact of the end-of-stroke buffer, an inevitable phenomenon when the vehicle is close to the load limit.

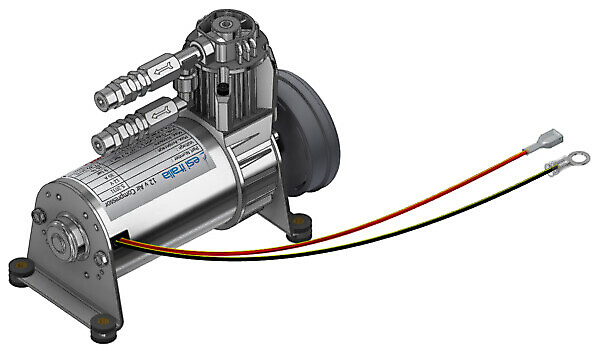

8” version reinforced with Basic compressor and dashboard pressure gauge kit

Structural typology Reinforced

When the vehicle is particularly stressed, or when the permanent load is almost always at the (upper) limits, the standard versions may not be sufficient.
Top Drive System therefore offers, on a wide variety of vehicles, reinforced versions that meet the needs of more demanding loads.
The solution involves an air spring of generally larger dimensions than the standard version provided for the corresponding vehicle version, in order to redistribute the load over a larger surface, always with a view to preserving the structural mechanical components of each vehicle.

Inflation type with specific dashboard panel and compressor(F)

Inflation (simultaneous right and left) via a switch in the cabin.

Manual deflation from emergency valves.

Supplementary suspensions for commercial vehicles (article 40755101)

Ducato X250

Axle fixing: Rear

Bellows type: Torpress G281-2

Complete with:

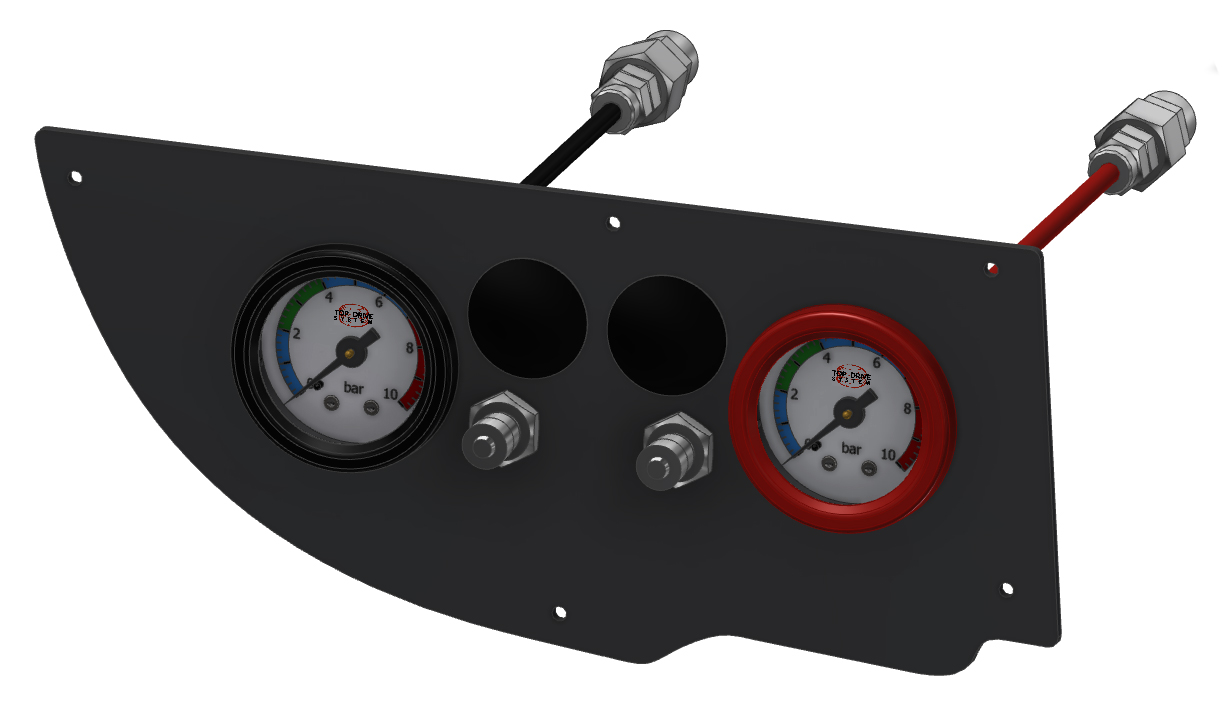

Specific dashboard panel and compressor(F)

Inflation (simultaneous right and left) via a switch in the cabin.

Manual deflation from emergency valves.

Vehicle Specifications:

• Ducato X250: from 06/2014
• Axle type: Square BxH=75×75
• Wheel: Single – front wheel drive
• Wheelbase up to 3800 mm
• Approval: TU-026617-A0-436
