FIAMMA PUMP WATER F 12V – 13L

Aqua F

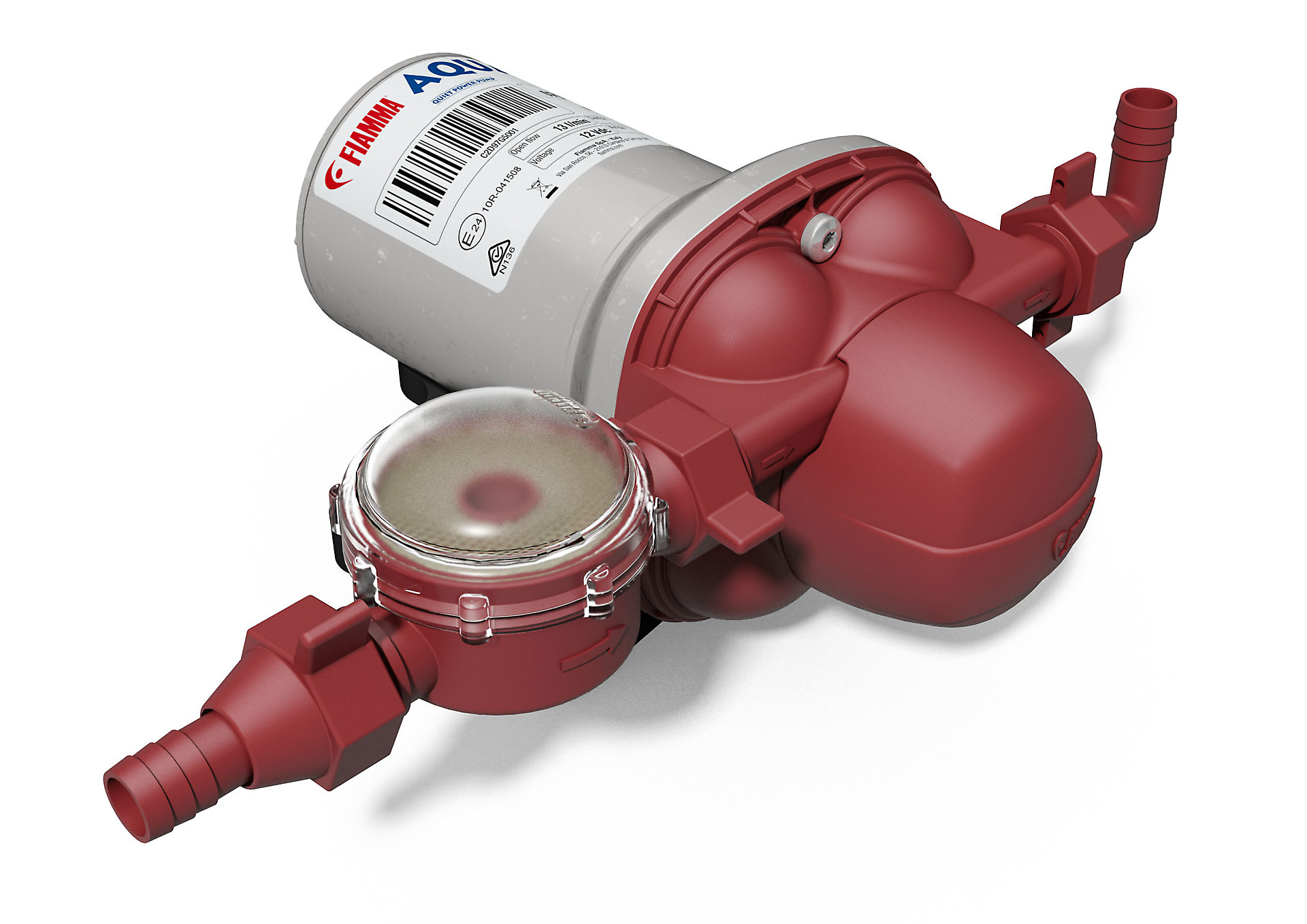

Self-priming diaphragm pump for drinking water, designed for constant flow and high flow rate. Equipped with an internal membrane made in a single piece to ensure hydraulic sealing, an anti-vibration base, a pressure switch and an easy-to-maintain external filter. Enhanced high efficiency motor, to guarantee high flow rate with low consumption. Can be installed in any position, can run dry without damage.

Versions
Two versions available, with a capacity of 13 and 10 litres.
The 10 l model is suitable for standard circuits, where a high flow rate is not required, version with low current absorption and more economical with fittings provided as optional. The 13 l version is instead suitable for systems where a high flow rate is required.

Advantages

• Plastic anti-vibration base
• Exposed motor with thermal protection
• 4 chambers that guarantee greater water flow
• One-piece diaphragm to protect the engine
• Stainless steel filter, standard in both versions, removable for convenient cleaning

Technical data:

Aqua F (13 litres)

Weight: 2.2kg
Power supply: 12V
Current draw: 2.5A
Flow rate at 0 bar: 13 l/min
Pressure switch intervention: 1.5 Bar 21.7 Psi
Suction head: 5 m
Noise: 50 dB
