−15%

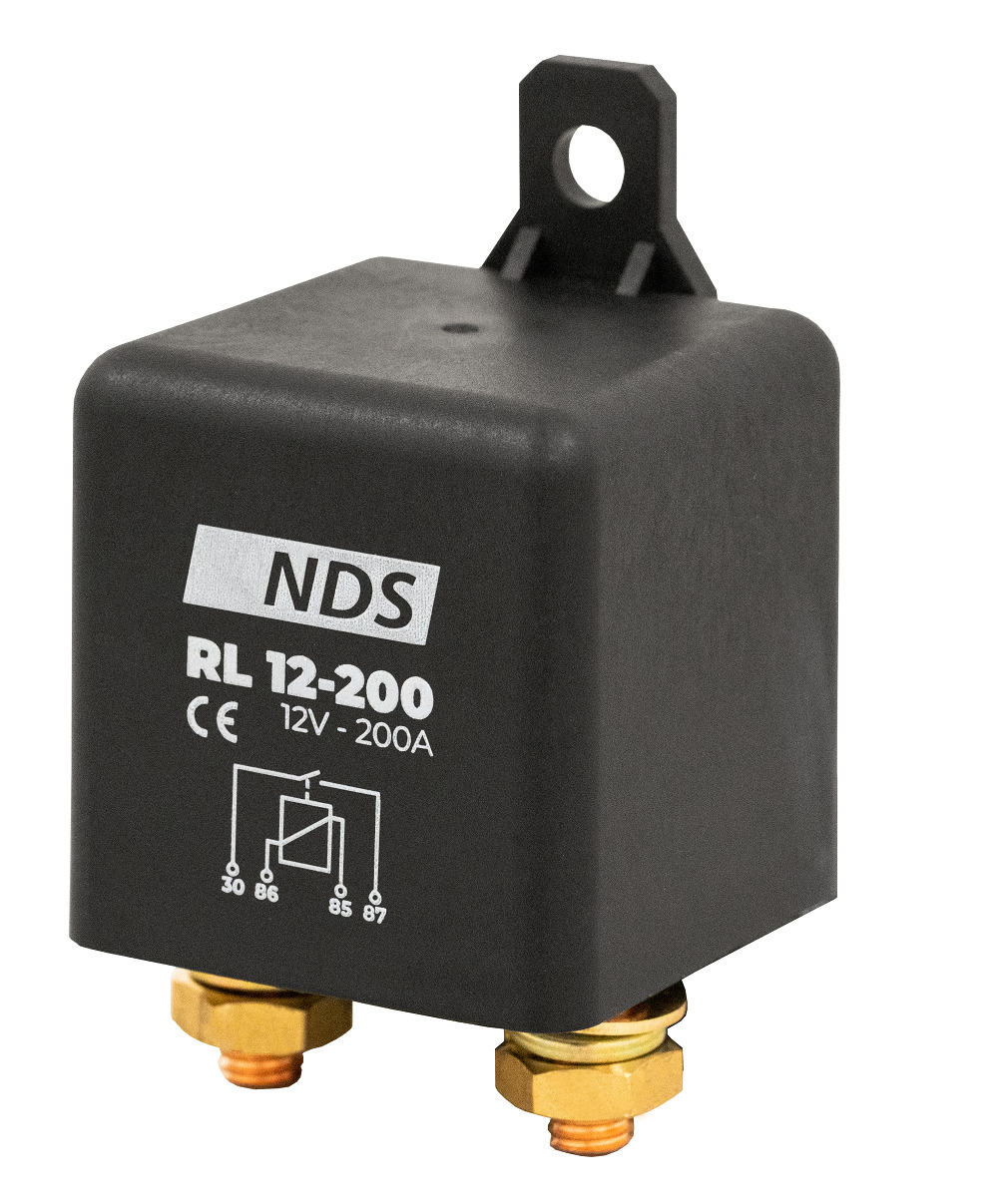

NDS RELAY 12V-200A

Original price was: 48,00 €.Current price is: 40,80 €.

  • Available
  • Delivery in 3-5 working days
SKU: 34096 Category: Manufacturer: NDS

Ask info

Share

PARALLELATOR / ISOLATOR RELAY

POWERRELAIS is a parallelizer, isolator between the starter battery and the service battery compatible with all 12V battery technologies: Lead/Acid (AGM, Gel, Free Acid), Lithium.

RL 12-200 is a power relay that allows you to charge the service battery using the alternator (traditional type), with charging currents up to 200 A – 12 V.

When the vehicle is on, the D+ signal (alternator active) closes the relay: the positive pole of the engine battery (i.e. the positive of the alternator) comes into contact with the positive pole of the services battery. With the engine off, the relay is open and the two batteries are disconnected.



MAIN FEATURES:

  • Maximum current supported 200A
  • Activation signal D+ or Subkey+
  • High conductivity contacts

Code RL 12-200
Nominal Voltage: 12 V
Maximum current: 200 A
Coil power: 2W
Operation time:≤ 10 m5
Release time:≤ 5 m5
Dimensions:85x50x51mm
