SWITCHING BATTERY CHARGER 500-LITHIUM SERIES

CB500-LT SERIES SWITCHING BATTERY CHARGER

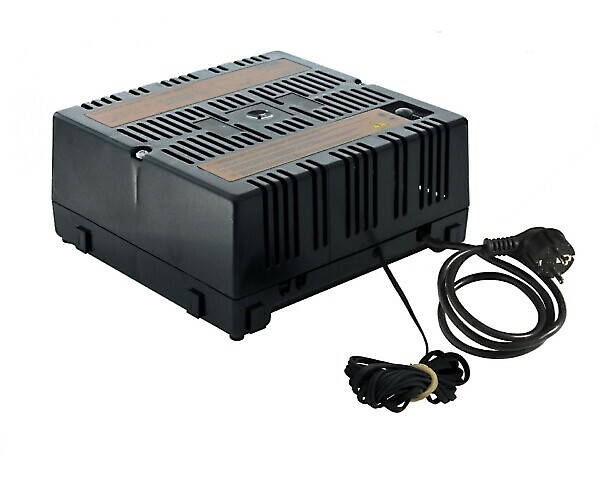

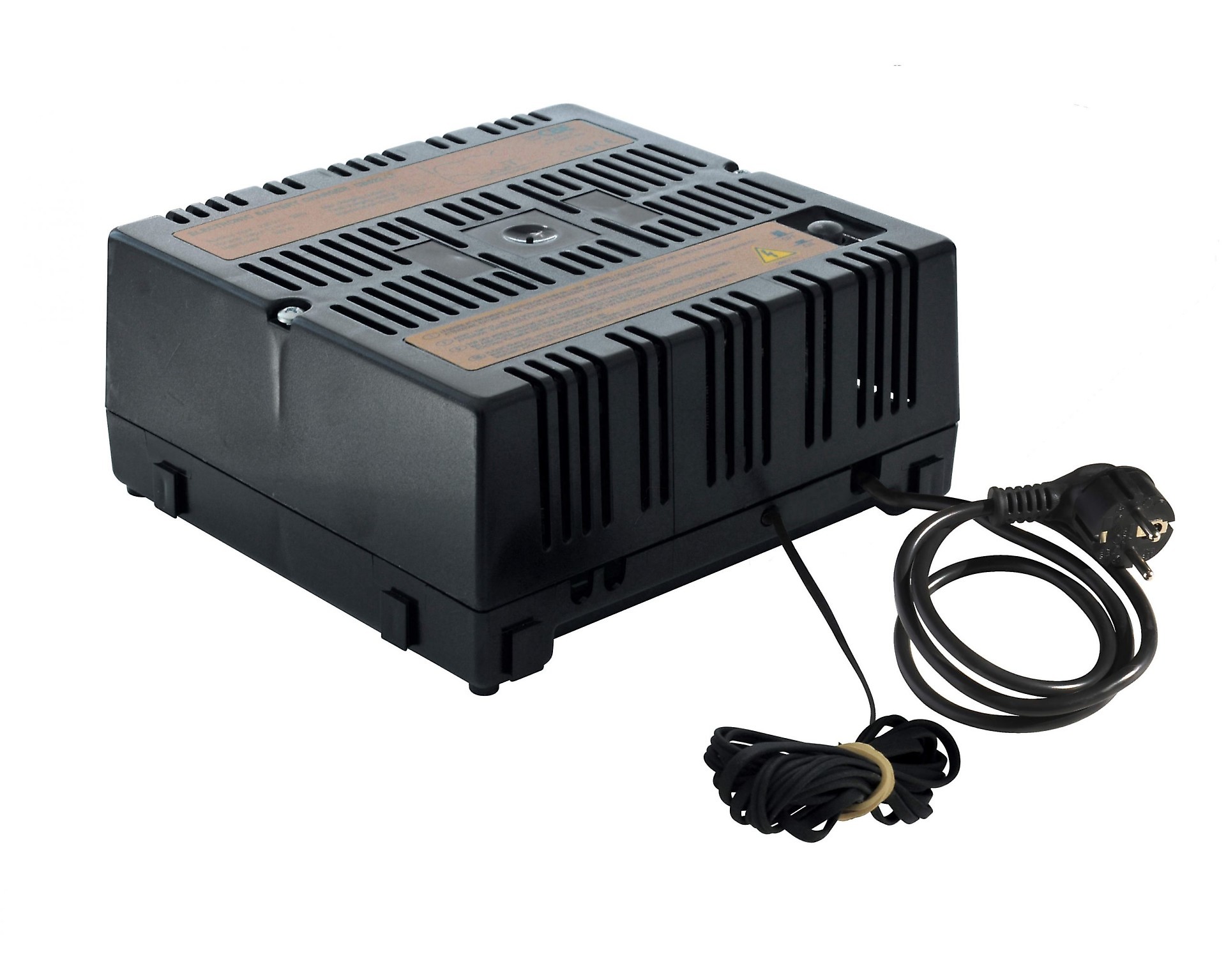

The new CB522-LT switching battery charger is exclusively dedicated to the automatic charging of lithium batteries. It is protected from over-temperature and the 12V outputs are protected from short circuit and reverse polarity

Four-step charging system for 12V batteries:
Bulk – charging the battery with maximum current until the end of charge voltage is reached. NB: The end of charge is reached only if the battery is efficient.

Absorption – completion of battery charging with constant end-of-charge voltage for a maximum time of 1h (or 30 minutes with I<5A).

Float – Maintenance charge at a constant voltage of 13.5V for a maximum time of 240 hours.
If the insertion of a high load lowers the battery voltage below 12.7V, the cycle restarts from the Bulk phase.

Refresh – The battery is charged at a voltage of 14.5V for a maximum time of 30 minutes (or up to I<5A). Subsequently the charge restarts from the Float phase.
The high frequency switching technology allows to obtain high efficiency with reduced weights and dimensions.

BATTERY CHARGER: CB522-LT
Code 321623
EAN13: 8033123267441

Technical data:

• Nominal Voltage 230Vac +-10%
• Frequency 50Hz+60Hz
• Maximum power 320W
• Protection Fuse 3.15A (glass 5 x 20)
• 230V Safety Switch

Output Technical Data

• Bulk Voltage (V) 14.5V
• Float Voltage (V) 13.5V
• Maximum Current 22A
• IUo U Charging Line
• Battery Type Selector NO
• Short Circuit and Reverse Protection Polarity 30A (blade)
• Thermal Protection YES
• Mains Presence Signal (S) 12V; 50mA

General Technical Data

• Yield 86%
• Ambient temperature 0-40°
• Forced ventilation – adjustment. automatic variable
• Degree of Protection IP 30
• Connection to the Schuko plug
• Connection to the battery “M6” screw
• Container Material Nylon + self-extinguishing fiber glass
• Dimension (mm) 180 x 190 x 85H
• Weight 1.2 kg
• Color Graphite Black
