TAW85M1N EXTERNAL GSM ANTENNA 2G – 3G – 4G – 5G

TAW85M1N external antenna

If you decide to park your camper or caravan inside campsites or in an area where 2G – 3G – 4G telephone signals are strong enough, you can always opt for a simplified solution consisting of the WIFI VAN T400 kit with a high-performance external antenna.

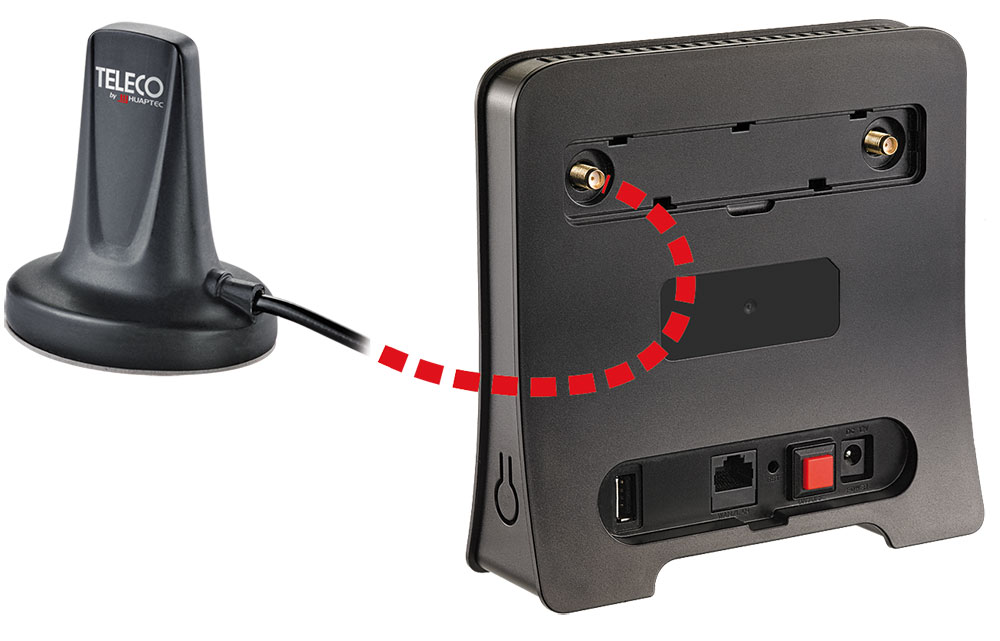

The external antenna, WIFI hot spot for campers TAW85M1N TELECO, installed on the roof of the vehicle, is able to receive mobile signals in open space and therefore without the obstacles normally present inside the camper it is able to provide the router with a higher signal strength.

Compatible with LTE, 3G, 4G and 5G standards, this solution guarantees a stable and fast data connection to the mobile network, thanks to MIMO (Multiple Input, Multiple Output) technology, even in areas where the signal is weaker.

The TAW85M2 MIMO 2×2 antenna is the perfect companion for your on-board router: it allows you to take full advantage of MIMO (Multiple Input, Multiple Output) connectivity, significantly stabilizing the signal, and offers download speeds of at least 150 Mbps on the 4G LTE network. Installing an external antenna significantly improves router performance, avoiding all the typical interference that can be created by on-board electronics.

What is 2×2 MIMO technology?
Let’s start with an analogy: on a single-lane road, cars travel normally, but as soon as there’s a problem of any kind, traffic stops and a queue immediately forms. On a two-lane road, however, cars can travel parallel, and if a problem occurs in one lane, traffic naturally diverts to the free lane.
In a data network, information packets travel just like cars, and the connection to the network is their path: with a 1×1 antenna we can receive information through only one lane, while with an antenna like the TAW85M2 MIMO 2×2 we have two independent lanes available, eliminating most possible blockages at the source.

Simplified installation and weatherproof technology
The TAW85M2 2×2 MIMO antenna is very simple to install: the cable can be easily hidden inside existing grooves, while the antenna can be glued to the roof. Its very compact size and aerodynamic, completely waterproof construction make it a perfect accessory for any vehicle, both aesthetically and in terms of performance.

Simplified installation and weatherproof technology
The TAW85M2 2×2 MIMO antenna is very simple to install: the cable can be easily hidden inside existing grooves, while the antenna can be glued to the roof. Its very compact size and aerodynamic, completely waterproof construction make it a perfect accessory for any vehicle, both aesthetically and in terms of performance.

Technical features
Connectivity: 3G, 4G LTE, 5G mobile networks, 2.4 GHz Wi-Fi network
Frequencies covered: 700-6,000 MHz
Antenna type: 2×2 MIMO
Mobile network speed: from 150 Mbit/s
Maximum gain: +6 dBi
Dimensions: 120.5 x 63 x 83.5 mm
Color: black
