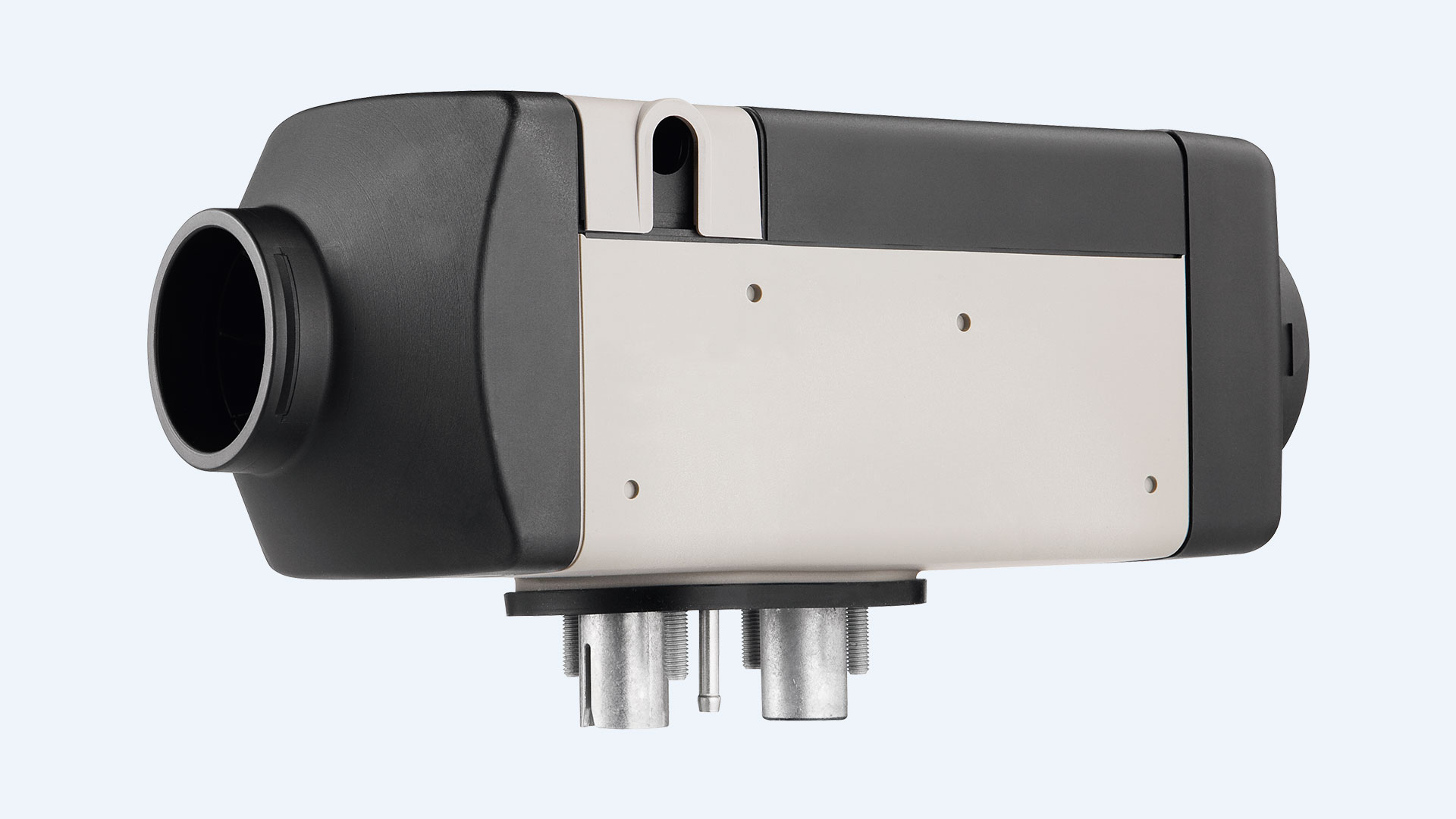

Air Top 2000 STC

The simple and economical solution. The compact Air Top 2000 STC air heater stands out for its versatility and low fuel consumption.

Thanks to its compact design, the Air Top 2000 STC can be quickly installed both inside and outside the vehicle. This heater quickly and quietly heats the air inside or in the cargo area and maintains it at the desired operating temperature. Users can choose between recirculation and fresh air modes.

The heater is easy to maintain and repair. Its design and low fuel consumption make the Air Top 2000 STC economical to maintain.

Advantages:

• Nominal thermal power 2 kW
• Faster, more even and quieter heating thanks to the DP 42 fuel pump
• Robust heater with compact dimensions and low fuel consumption
• Ease of maintenance and diagnostic capability
• Suitable for use in vehicles for the transport of dangerous goods (ADR)
• Full W-bus compatibility of the heater
• Continuous operation with the new MultiControl HD control elements
• Using Unibox is no longer necessary

Equipment:

Installation kit

Heater, fuel pump DP 42, protection, gasket
Heater wiring, fuel pump wiring,
Fuel pipe Da 5 Di 2 L 6000, flexible stainless steel exhaust pipe D 22 / L 700, flexible combustion air pipe PAK Di 22 / L 800, silencer for combustion air intake

Control elements:

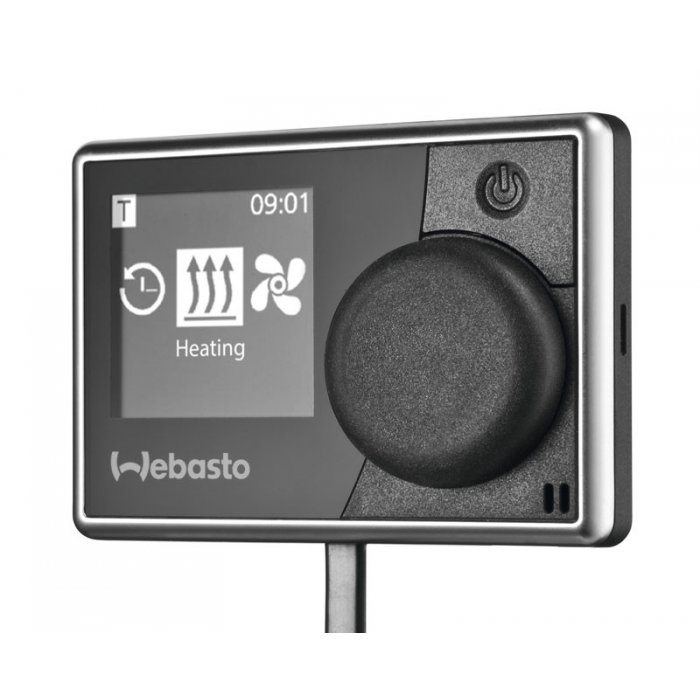

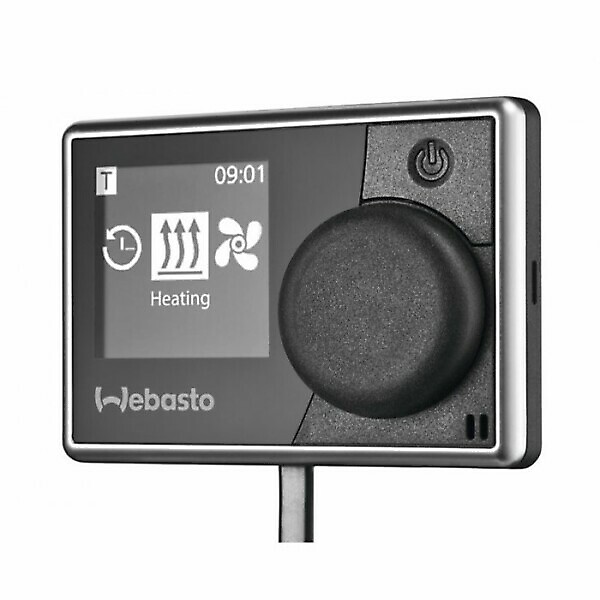

MultiControl HD

12/24 V, front panel dimensions (L x W) 68 x 48 mm, installation depth: 15 mm, quick and intuitive operation thanks to a large TFT display and multifunction button, display
operating states via multi-coloured LEDs, intuitive menu controls for heating, ventilation and timer control, 3 pre-selectable times per day, programming option 7 days in advance, sensor/display of room temperature, diagnostic interface for W-bus heaters and Thermo Test

Technical specifications:
Air Top 2000 STC

• ECE R122 approval number (heater): E1 00 0216
• ECE R10 (EMC) approval number: E1 04 1085
• Heating power, control range (kW): 0.9 –2.0
• Fuel consumption, control range (l/h): 0.12 –0.24
• Nominal power consumption, control range (W): 14 –29
• Heating air flow rate at 0.5 mbar: 93
• Fuels: Diesel fuel EN 590; PME DIN EN 14214; Fuel oil (EL) DIN 51603-1
• Operating temperature (°C): From –40 to +40
• Dimensions L x W x H (mm): 311 x 120 x 121
• Weight (kg): 2.6
