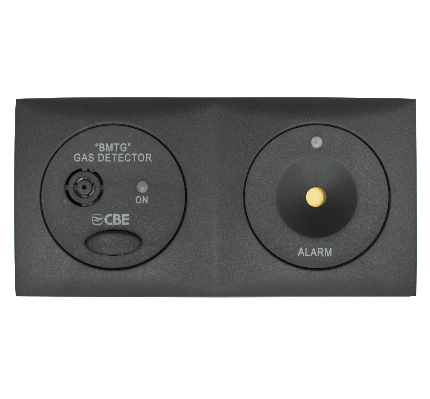

BMTG BROWN LPG AND NIGHT SMOKING GAS DETECTOR

BMTG GAS DETECTOR

The BMTG detector can detect the presence of LPG (liquefied petroleum gas) and ether gas (narcotic effect) in the air; an acoustic signal warns of the presence of gas in the air before it affects people inside the vehicle and before its concentration reaches one-tenth of the minimum value required to trigger a potential explosion.
The two calibration levels present on the circuit allow you to adjust the sensitivity of the sensor based on the use and the chosen installation position.
Each detector is tested and calibrated with reference gas; the sensor has a lifespan of approximately 10 years.

Flush-mounted version; complete with “BMAC2” frame. The detector can be combined with the “MODULAR PLATES BERKER” series.

Specifications:

• 12V power supply.
• Dim. 119 x 60 mm.
• Sensor consumption: 75mA
• Acoustic power (buzzer): 85 dB at 1 meter
• Brown RAL8017
